access control kit,metal shell access controller+power+280kg magnetic lock+exit button+10 keyfob ID tags,sn:Tset 6

access control kit,metal shell access controller+power+280kg magnetic lock+exit button+10 keyfob ID tags,sn:Tset 6
  • Продавец
  • Список ценUS $86.50piece
  • Продажная ценаUS $86.50piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,1 (557)

Oписание продукта



DIY Complete Kit RFID Access Control System for Home / Office Use

Access Controller + Power Supply + Magnetic Lock + 10 ID Cards / Keyfob + Exit Button




Full Kit Set !  Save More, Enjoy More !!







Why use access control ?


Access control enables you to control who has access to your building. Locks and keys also allow you to secure your building, but when keys are lost or stolen, the inconvenience and expense of changing locks and re-issuing keys can be considerable. Keys may also be copied, creating even more security risks.

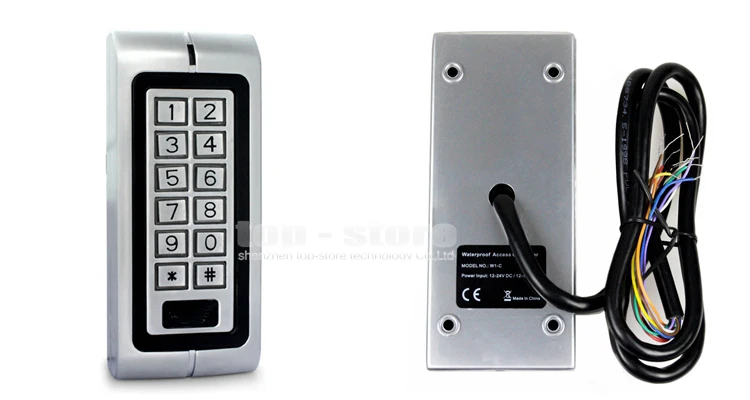

Access Control Keypad:


The W1 is single door multifunction standalone Waterproof access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in s strong, sturdy and vandal proof zinc alloy electroplated case.


These features make W1 an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and prisons.


  • Metal shell, anti-vandal, more secure, waterproof design.
  • Waterproof, can working outside.
  • Backlight keypad.
  • Convenient for operating on night.
  • Large Capacity: 2,000 users.
  • Support 3 Modes Access: Card, PIN, Card+PIN.
  • Card Type: 125KHz EM, PIN length: 4~8 digits.
  • Very low power consumption ( ≤35mA), long service life and stable performance.
  • High Speed Search: filled with 2,000 users, the search time < 0.1 seconds.
  • Manage cards: the manage cards can add/delete the users directly, very convenient
  • Wiegand 26 input & output, can work as Wiegand reader/Controller.
  • Protective properties: IP65 fully-potted. with anti-demolition, alarm function, anti-static interference 12KV.
  • Certificate: CE




  • Operating Voltage: 12~18V AC/12~24V DC
  • Adjustable Door Relay Time: 0~99s
  • Static Current: ≤35mA
  • Wiegand Interface: Wiegand 26
  • Card Read Rang: 3~6cm
  • Operating Temperature: -40°c~60°c
  • Operating Humidity: 0%~95%
  • Lock Output Load: ≤1A
  • Alarm Output Load: ≤3A
  • Antistatic: 12KV
  • Environment: Conforms to IP65
  • Wiring Length: 90~100CM
  • Signal Light: red, green, yellow LED light display
  • Dimensions: L 135mm×W58mm×H 26mm


2 in 1




Power Supply:


This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.


  • Can reduce the load of access controller, save wiring to reduce the hidden trouble
  • Set NC / NO outputs, can control various types of electric locks
  • Based delay control circuit, lock time can be in 0-15 seconds
  • The circuit board has remote control port.




  • Input Voltage: AC 110~220V  50~60Hz
  • Output Voltage: DC 12V 3A
  • Outer Dimensions: 103 x 68 x 33mm





Waterproof 280kg Magnetic Lock:

It is a High-performance 280kg Holding Force electric magnetic lock which suits for many access control system. This electric lock can meet your need perfectly.


  • Waterproof Version, can work outside.
  • NC Mode - (Locked while supplied with power) Fail Safe Mode
  • Performance Testing: 1000000 times aging test
  • Suitable For: Wooden Door, Metal Doorr, Fireproof Door, etc.
  • Safety function: Built-in voltage spike suppressor
  • Anti-Residual Magnesium Designed


  • Voltage: 12V DC
  • Application: wood, iron doors, glass doors
  • Faceplate dimensions: 180 x 38 x 11mm
  • Main body dimensions: 250 x 48 x 27mm
  • Pack includes: electric magnetic lock, installation diagrams




125KHz RFID ID Cards / Keyfobs :


These are 10pcs 125KHz RFID Proximity Keyfobs / ID cards, they can work with the product which has 125Khz RFID card reader.


  • Water resistant
  • Detecting distance: 3-10cm
  • Operation frequency: 125Khz
  • Each comes with Key ring included
  • Compatible with all RFID ID card reader to gain access
  • Each token pre-programmed with unique ID which is printed on it.






Exit Button :


This exit button widely used in the door access control system.When you want to go out, you just need to press this Exit Button, then you can go out:


  • Maximun Power Rating: 36 VDC 3A-5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure  Mode)
  • Performance Testing: 1000000 times aging test
  • Suitable For: Wooden Door, Metal Door, Glass Door, Fireproof Door, etc








Remote Control:


This is a remote control device for Door Access Control System, after you connect it on your system, you can press the remote control to open the door remotely, the distance can reach up to 50 meters:

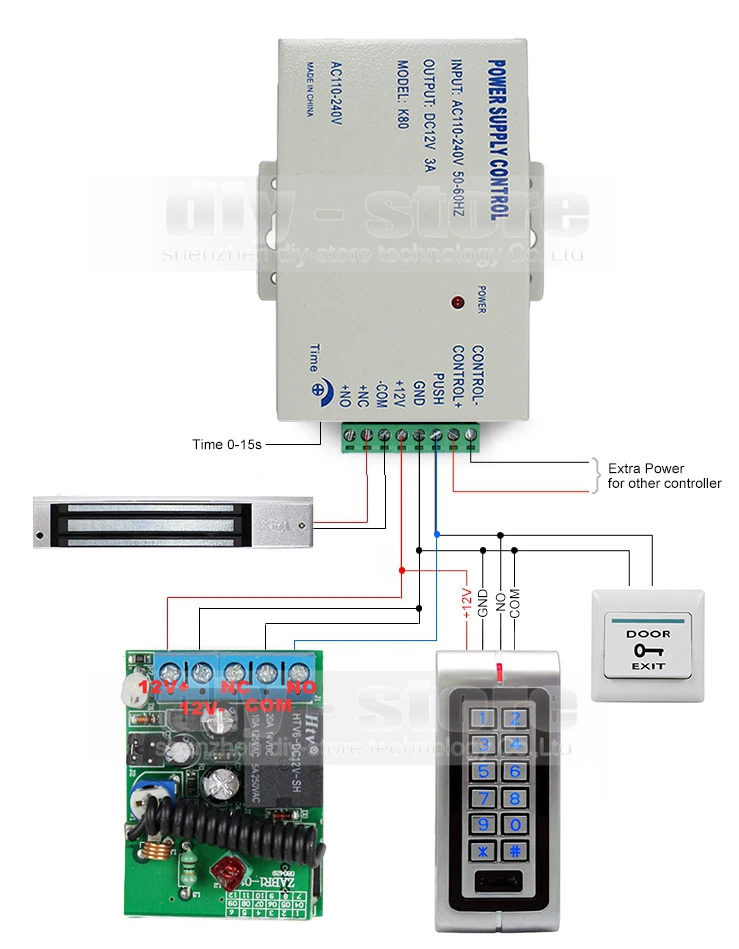

Connection diagram:

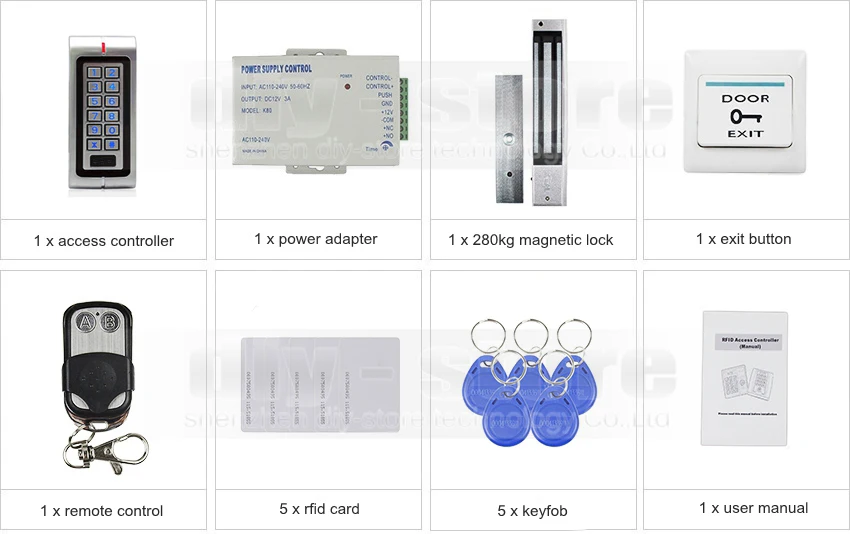

What\'s in:
