GALO Security Metal case RFID keypad Access control electric magnetic lock kit for 280kg glass wooden door with 10 tags chip

GALO Security Metal case RFID keypad Access control electric magnetic lock kit for 280kg glass wooden door with 10 tags chip
  • Продавецpodemosregiondemurcia.info
  • Список ценUS $44.88piece
  • Продажная ценаUS $44.88piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,1 (761)

Oписание продукта





DIY Complete Kit RFID Access Control System for Home / Office Use


Access Controller + Power Supply + Magnetic Lock + 10 ID Cards / Keyfob + Exit Button



Fingerprint and ID carder reader Two in One!!

Full Kit Set ! Save More, Enjoy More !!



CFR10+_







Why use access control ?



Access control enables you to control who has access to your building. Locks and keys also allow you to secure your building, but when keys are lost or stolen, the inconvenience and expense of changing locks and re-issuing keys can be considerable. Keys may also be copied, creating even more security risks.









Access Controller :



This product uses the most advanced fingerprint identification technology, it also has the ID card reader which can read the RFID 125Khz ID card. it is an ideal choice for the occasions with high security requirements, suitable for business affairs organization, office, factory, housing district etc.



  • Fingerprint technology,
  • Build in RFID reader,
  • Full programming from the remote control,
  • Connection for external release button ( exit button ),
  • Memory capacity: 500 user cards and 1 passwords,
  • Does not need to connect on computer, it works alone,
  • Wiegand 26-bit output interface for flexible application of RFID card readers.



Specifications:



  • Wiring connections: Electric Lock, Remote Control, Exit Button;
  • Working Voltage: DC 12V;
  • Standby electricith: 55mA
  • Work current: < 130mA
  • Card Type: ID card;
  • Frequency: 125Khz;
  • Reading distance: 3-4 cm;
  • Work temperature: -10c - 50c



IMG_



Power Supply:



This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.



  • Can reduce the load of access controller, save wiring to reduce the hidden trouble
  • Set NC / NO outputs, can control various types of electric locks
  • Based delay control circuit, lock time can be in 0-15 seconds
  • The circuit board has remote control port.



Specification:



  • Input Voltage: AC 110~220V 50~60Hz
  • Output Voltage: DC 12V 3A
  • Outer Dimensions: 103 x 68 x 33mm

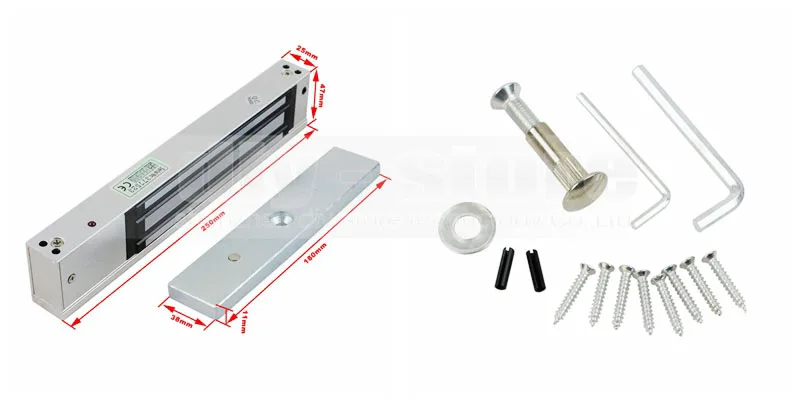

280kg Magnetic Lock:

It is a High-performance 280kg 600 LBs Holding Force electric magnetic lock which suits for many access control system. This electric lock can meet your need perfectly. Widely used in wood door, iron door, glass door , etc.



  • NC Mode - (Locked while supplied with power) Fail Safe Mode
  • Performance Testing: 1000000 times aging test
  • Suitable For: Wooden Door, Metal Doorr, Fireproof Door, etc.
  • Safety function: Built-in voltage spike suppressor
  • Anti-Residual Magnesium Designed



Specifications:


  • Voltage: 12V DC
  • Application: wood, iron, glass doors
  • Faceplate dimensions: 180 x 38 x 11mm
  • Main body dimensions: 250 x 48 x 27mm
  • Pack includes: electric magnetic lock, installation diagrams
  • Construction: stainless steel.





280KG



125KHz RFID Cards / Keyfobs :



These are 10pcs 125KHz RFID Proximity Keyfobs / ID cards, they can work with the product which has 125Khz RFID card reader.



  • Water resistant
  • Detecting distance: 3-10cm
  • Operation frequency: 125Khz
  • Each comes with Key ring included
  • Compatible with all RFID ID card reader to gain access
  • Each token pre-programmed with unique ID which is printed on it.

/common/upload/140/790/667/085/1407906670853_hz-fileserver-upload-10_1845274



Exit Button :



This exit button widely used in the door access control system.When you want to go out, you just need to press this Exit Button, then you can go out:



  • Maximun Power Rating: 36 VDC 3A-5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
  • Performance Testing: 1000000 times aging test
  • Suitable For: Wooden Door, Metal Door, Glass Door, Fireproof Door, etc





kaiguan







Remote Control:



This is a remote control device for Door Access Control System, after you connect it on your system, you can press the remote control to open the door remotely, the distance can reach up to 50 meters:





XFXXX
